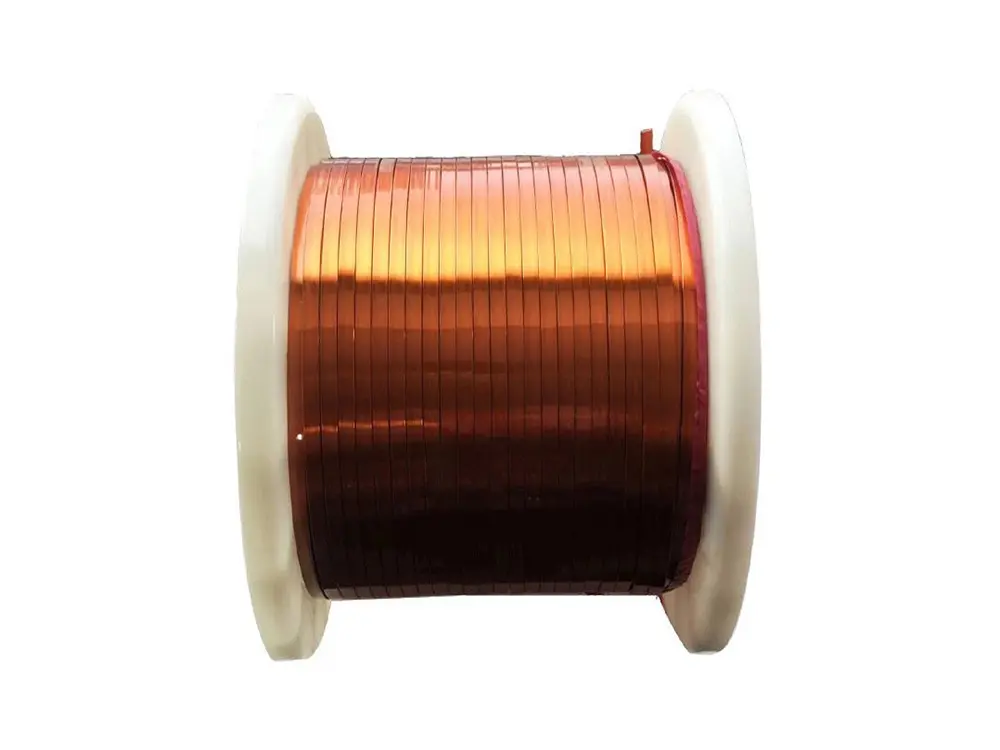

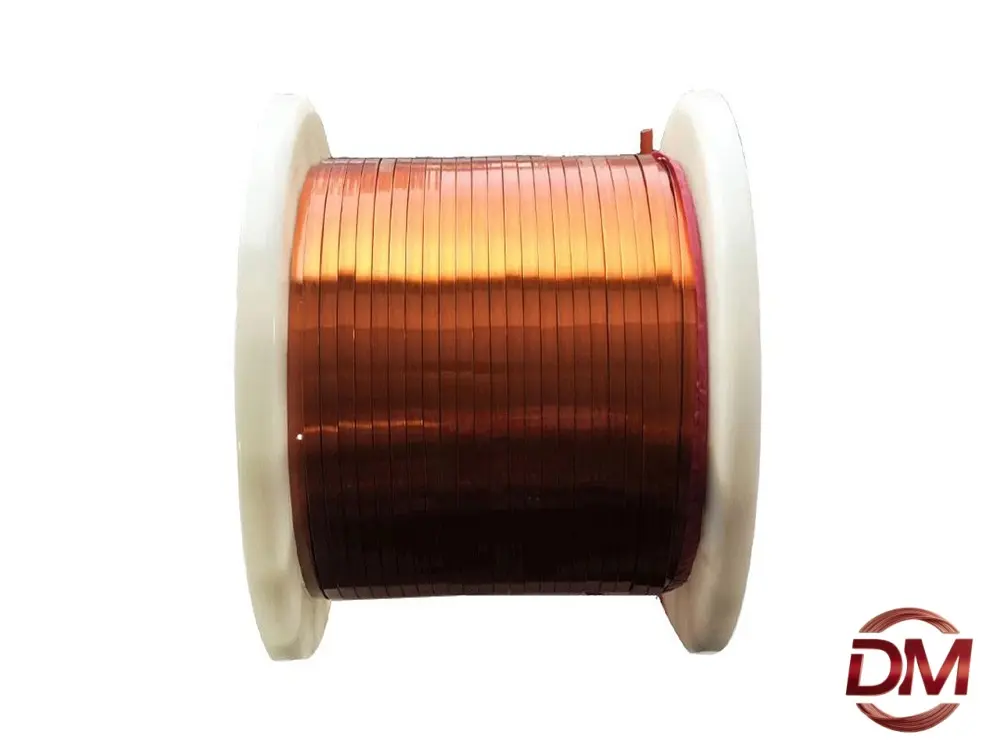

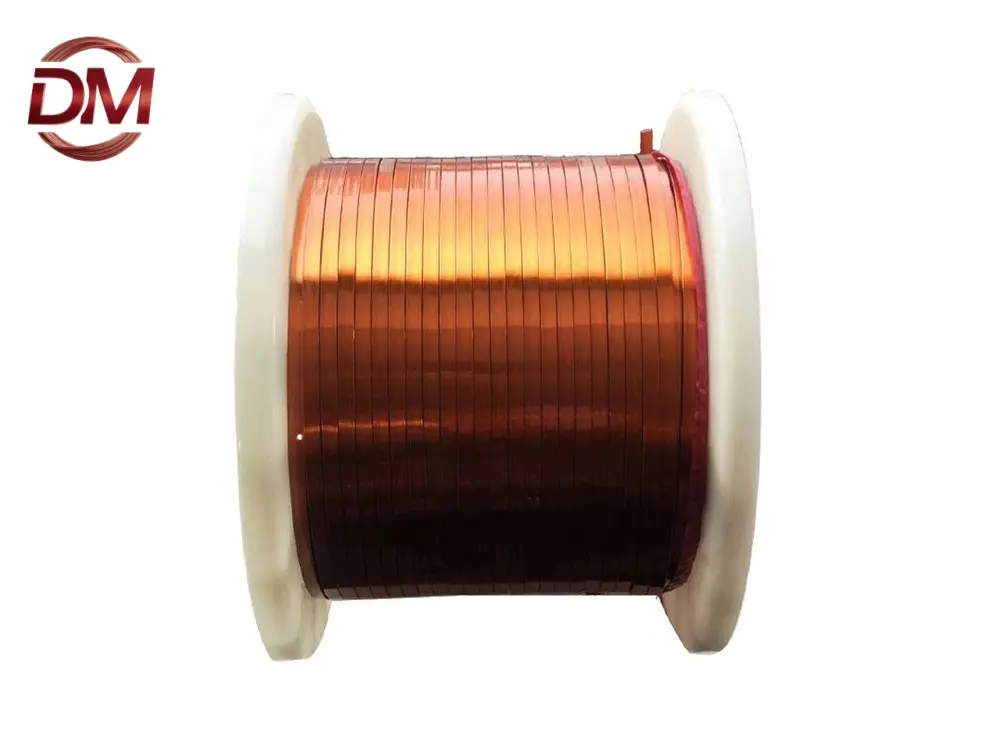

Wholesale 200 Class Enameled Flat Copper Wire Suppliers, Factory

As an industrial conductor be applied on the winding of transformer, electric motor, generator and various electric equipment, the enameled rectangular winding wires are extruded and draw out from oxygen-free copper rod or aluminum and aluminum allays rod by means of specific mold, then winded after coated by insulated paint.

The enamelled flat copper wire produced by our company is suitable for driving motors, transformers, motors, generators and winding coils of various electrical devices of new energy vehicles.

Send Inquiry

Product Description

Product Specifications

Product Types

I/AIWR/200, Q(ZY/XY)B/200

Temperature Class (℃)

Conductor Thickness

a: 0.90 - 5.6mm

Conductor Width

b: 2.00 - 16.00mm

Recommended Width Ratio

1.4 < b/a < 8.0

Standard Compliance

GB/T7095.6-1995, IEC60317-29

Spool Type

PC400 - PC700

Package Type

Pallet Packing

Certifications

UL, SGS, ISO9001, ISO14001 (Third-party inspection accepted)

Quality Control

Internal standard is 25% higher than IEC standard

💡 Any customer-made specification will be available, please kindly inform us in advance.

Frequently Asked Questions

What are the available model types for this enameled rectangular wire?

The standard product models available are I/AIWR/200 and Q(ZY/XY)B/200.

What is the temperature class and quality standard of the wire?

This wire belongs to Temperature Class C. It strictly complies with GB/T7095.6-1995 and IEC60317-29 quality standards.

What are the conductor thickness and width specifications?

The conductor thickness (a) ranges from 0.90mm to 5.6mm, and the width (b) ranges from 2.00mm to 16.00mm. The recommended width-to-thickness ratio is between 1.4 and 8.0.
