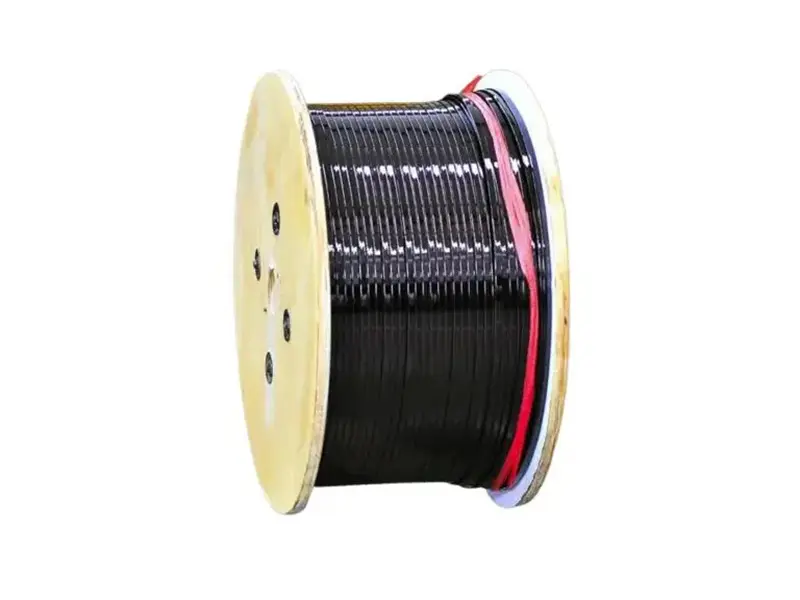

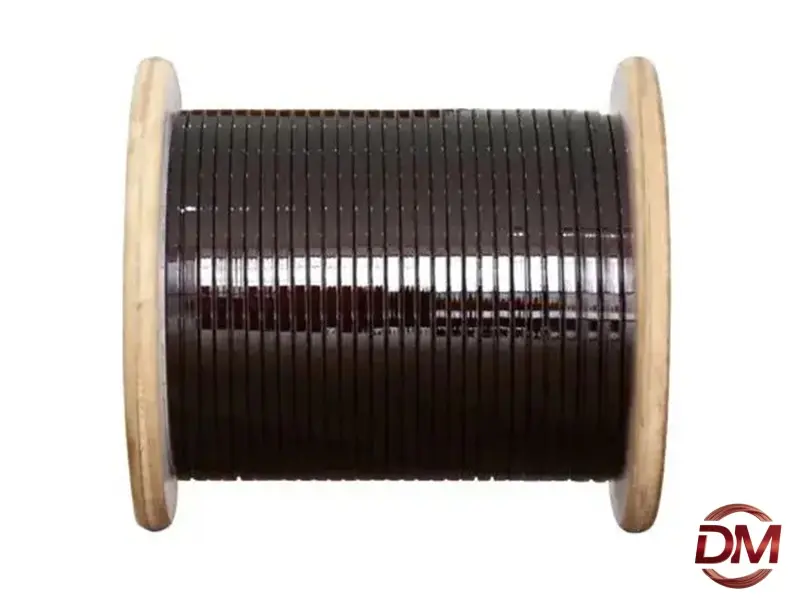

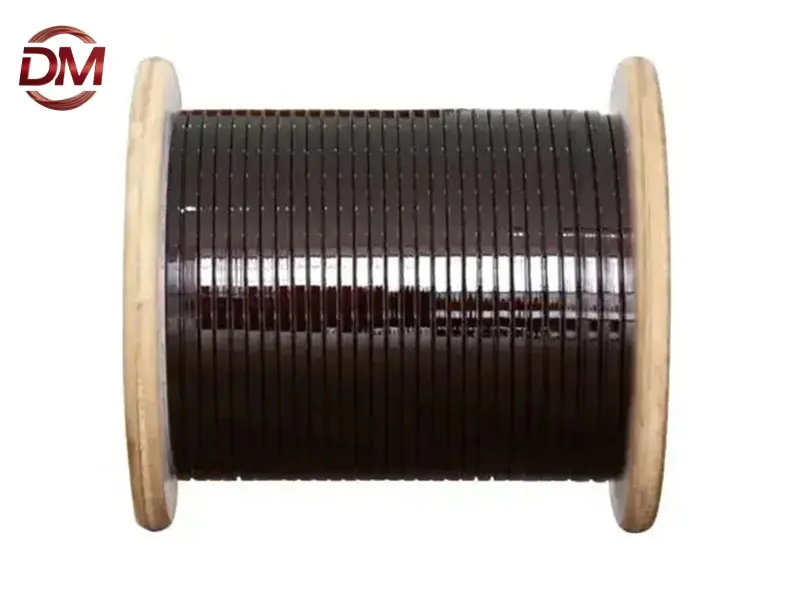

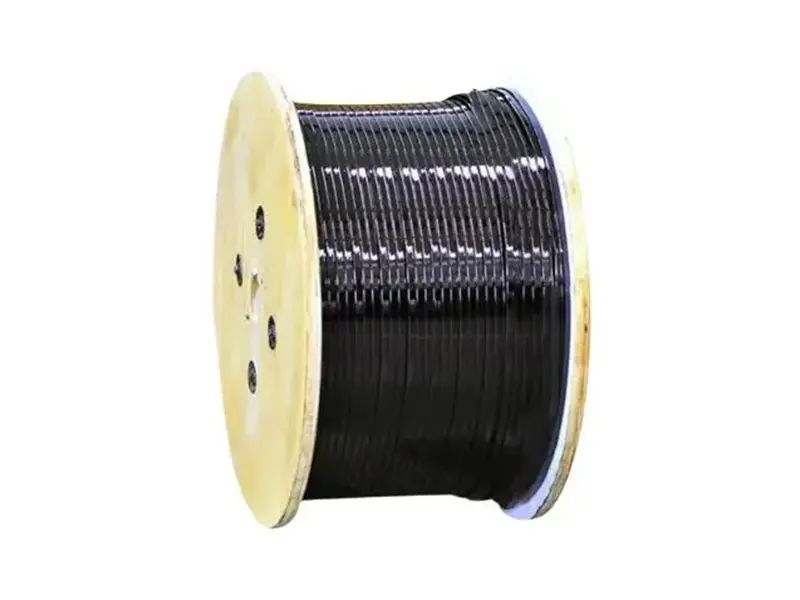

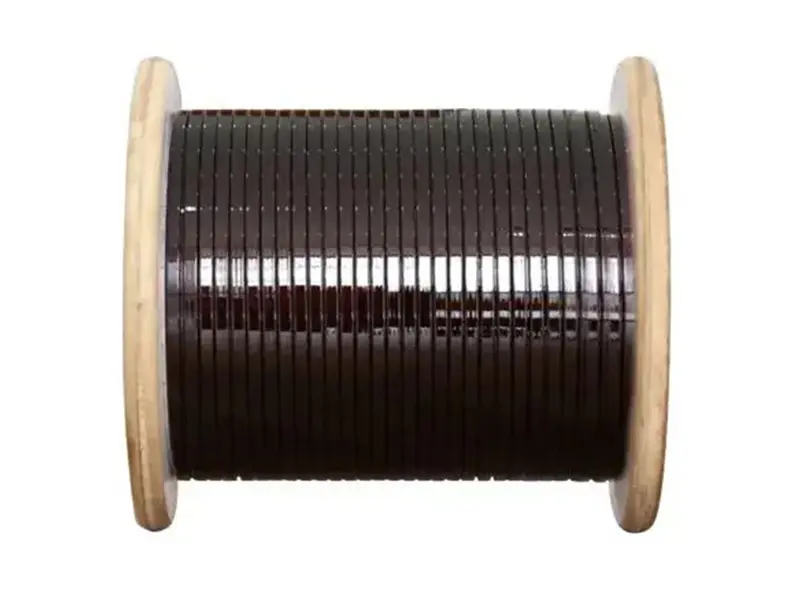

China 200 Class Enameled Flat Aluminum Wire Factories, Exporters

1 / 5

China 200 Class Enameled Flat Aluminum Wire Factories, Exporters

Enamelled wire is coated with one or more insulating coatings on the surface of the conductor, which is baked and cooled to form a kind of wire with insulating layer. Enamelled wire is a kind of electromagnetic wire (winding wire), which is used for electromagnetic induction. Compared with round wire, rectangular wire has incomparable advantages and characteristics and is used in many fields. The product has superior thermal resistance, chemical solvent resistance and thermal shock resistance.

Send Inquiry

Product Description

Product Types

Model Types: EI/AIWAR/200, Q(ZY/XY)LB/200

Temperature Class (℃): C

Conductor Thickness (a): 0.90 - 5.6mm

Conductor Width (b): 2.00 - 16.00mm

Recommended Conductor's Width Ratio: 1.4 < b/a < 8.0

Standard: GB/T7095.6-1995, IEC60317-29

Spool & Packaging: PC400-PC700 Spool, Pallet Packing

Certifications: UL, SGS, ISO9001, ISO14001 (Accepts third party inspection)

Quality Control: Internal standard is 25% higher than IEC standard

Any customer-made specification will be available, please kindly inform us in advance.

Frequently Asked Questions

Q: What types of enameled rectangular wire are available?

We offer standard EI/AIWAR/200 and Q(ZY/XY)LB/200 models. Additionally, any customized specifications can be provided to meet your specific requirements.

Q: What are the conductor dimensions and width ratios?

The conductor thickness (a) ranges from 0.90mm to 5.6mm, and the width (b) ranges from 2.00mm to 16.00mm. The recommended conductor width ratio is 1.4 < b/a < 8.0.

Q: What quality standards and certifications do these products meet?

Our products conform to GB/T7095.6-1995 and IEC60317-29 standards. We hold UL, SGS, ISO9001, and ISO14001 certifications, and we fully accept third-party quality inspections.

Q: How is the product quality controlled internally?

Our internal quality control standards are highly strict, set at 25% higher than the standard IEC requirements to ensure superior performance and durability.

Q: What are the packaging and spool options?

The product is supplied with PC400 to PC700 spools and packed on secure pallets to ensure safety during transit.
