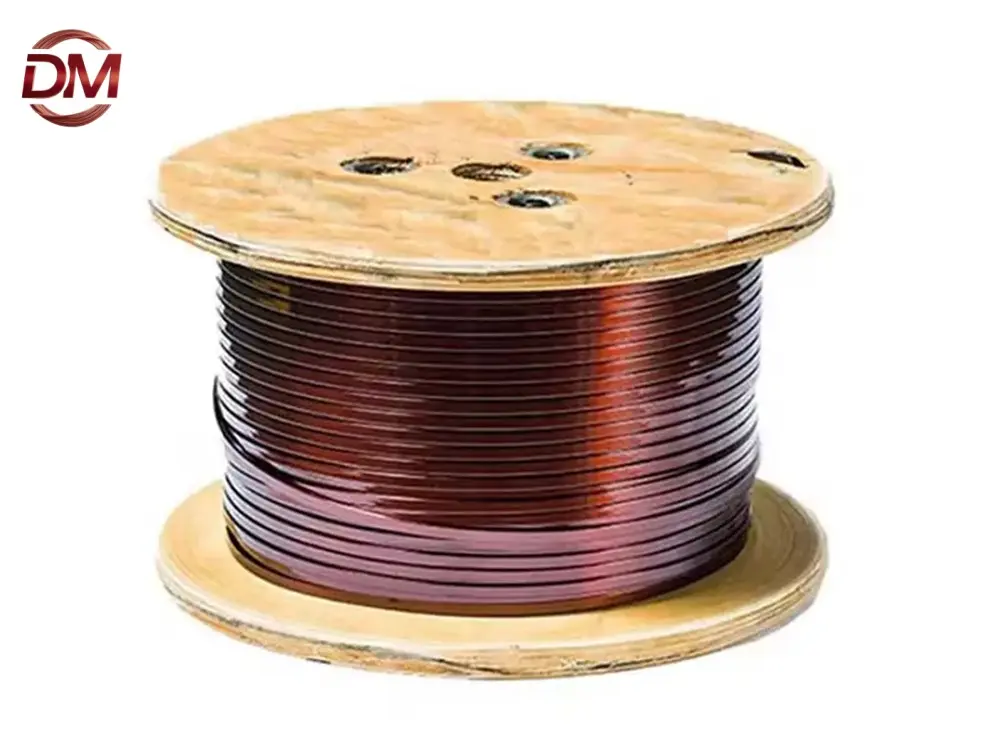

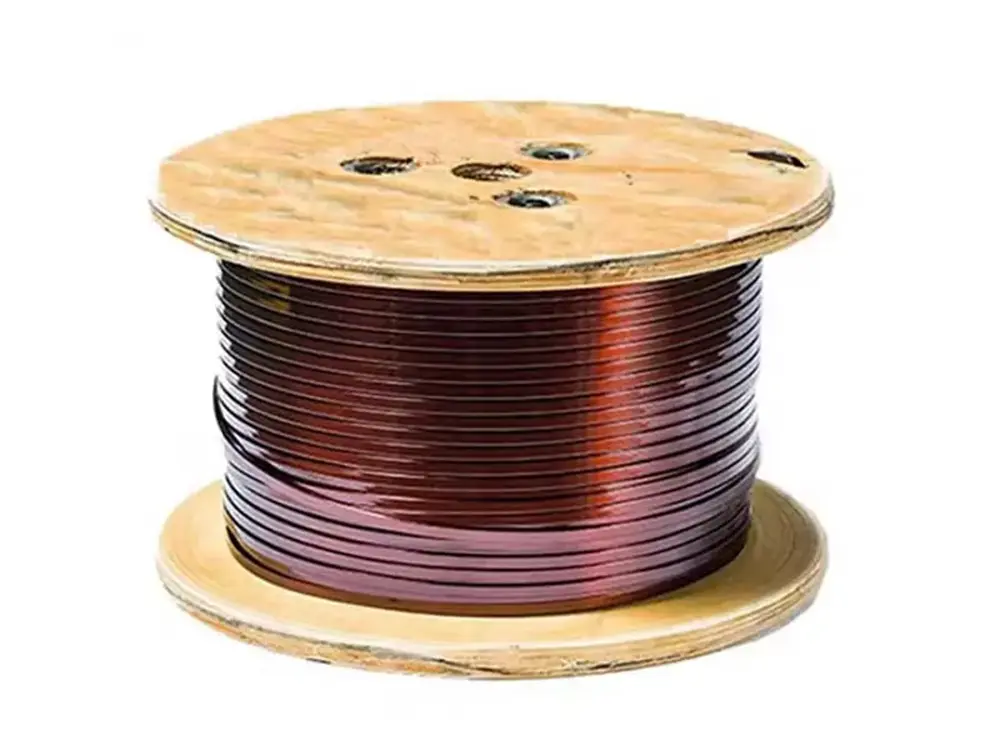

Wholesale 220 Class Enameled Flat Copper Wire Manufacturers, Factories

Enamelled wire is a main variety of winding wire, which is composed of conductor and insulation. the bare wire is softened by annealing, then painted and baked many times. 220 Class Enameled Flat Copper Wire is used for dry type transformer, electric motors, generators and hybrid or EV driving motors. The enamelled flat copper wire produced by our company is suitable for driving motors, transformers, motors, generators and winding coils of various electrical devices of new energy vehicles.

Send Inquiry

Product Description

Product Types

Model Code
AIWR/220, QXYB/220
Temperature Class (℃)
C
Conductor Thickness
a: 0.90 - 5.6mm
Conductor Width
b: 2.00 ~ 16.00mm
Recommended Conductor's Width Ratio
1.4 < b/a < 8.0
Standard
GB, IEC
Spool Type
PC400 - PC700
Package of Enameled Rectangular Wire
Pallet Packing
Certification
UL, SGS, ISO9001, ISO14001, accept third party inspection as well
Quality Control
Internal standard is 25% higher than IEC standard

Any customer-made specification will be available, please kindly inform us in advance.

Frequently Asked Questions

Q: What product types are available for enameled rectangular wire?

The available product types include AIWR/220 and QXYB/220, designed to meet high-performance requirements.

Q: What is the temperature class and performance level of these wires?

These products are categorized under Temperature Class C, ensuring excellent thermal stability and reliability in demanding environments.

Q: What are the standard conductor dimensions for this product?

The conductor thickness (a) ranges from 0.90mm to 5.6mm, and the width (b) ranges from 2.00mm to 16.00mm. The recommended width-to-thickness ratio (b/a) is between 1.4 and 8.0.

Q: Can I request customized specifications for my project?

Yes, custom-made specifications are fully supported. Please inform us of your specific requirements in advance to accommodate your request.

Q: What quality standards and certifications do these products comply with?

The wires are manufactured to GB and IEC standards. They are certified under UL, SGS, ISO9001, and ISO14001. Additionally, internal quality control standards are 25% higher than the IEC standard, and third-party inspections are accepted.

Q: How is the product packaged for delivery?

The enameled rectangular wire is shipped using secure Pallet Packing. Spool types ranging from PC400 to PC700 are used to ensure product integrity during transport.
